Mobile Temporary Bonding & Debonding Carriers

Engineered for the semiconductor and advanced packaging industries. Zero-force release. No support equipment. Made in the USA.

Why Choose Semi-Bond Carriers?

Semi-Bond mobile temporary bonding and debonding carriers deliver a competitive total cost of ownership while integrating directly into your existing processes — no support equipment required.

Our flagship product, the SBC-LT Series Carrier, is delivered fully prepared for bonding and debonding — no spin coat, bake, or cure of bonding material required. Each carrier supports tens of bond and debond cycles and is functional at operational temperatures of 250°C and above.

Competitive Total Cost of Ownership

Semi-Bond carriers offer a total cost of ownership that is a fraction of competing temporary bonding and debonding solutions. Lower consumable costs, faster cycle times, and no specialized equipment combine to deliver meaningful savings.

No Support Equipment Required

Our carriers integrate directly into your existing semiconductor fabrication and advanced packaging processes. There is no need to procure or qualify additional handling equipment or processing tools.

Fast and Easy Bond & Debond — In Seconds

Bonding and debonding is accomplished in seconds, dramatically reducing process cycle times compared to conventional temporary bonding methods that require lengthy thermal or chemical steps.

Multipurpose — Wet and Dry Process Compatible

Semi-Bond carriers integrate seamlessly into both wet and dry semiconductor processes, making them a versatile solution across a broad range of back-end-of-line and advanced packaging workflows.

Zero-Force Bond & Debond

Zero-force bond and debond steps eliminate mechanical stress on devices and substrates, minimizing the risk of device damage, breakage, and mishandling — protecting your yield throughout the process.

Bond Resilience Across Wide Operational Envelopes

Our carriers maintain reliable bond integrity across a wide range of temperatures, pressures, and chemical environments, ensuring consistent performance without bond degradation during demanding process steps.

Versatile Substrate Compatibility

Semi-Bond carriers can bond to almost any substrate, offering flexibility for diverse semiconductor and advanced packaging applications regardless of substrate material or surface chemistry.

Designed and Manufactured in the United States

All Semi-Bond products are designed and manufactured in the USA, ensuring quality control, supply chain reliability, and domestic sourcing for customers who require it.

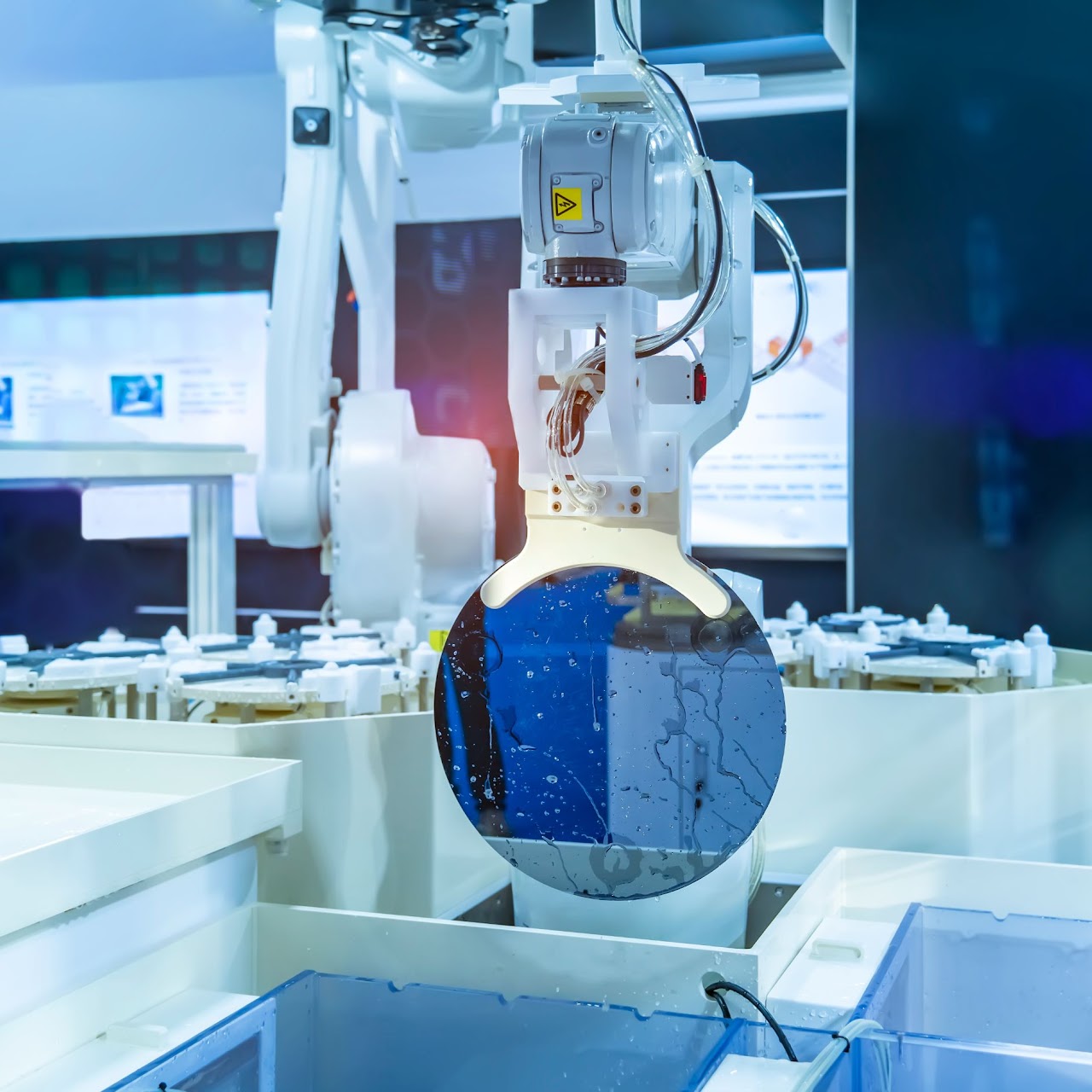

Robotic arm handling a semiconductor wafer in an automated processing tool — the type of workflow Semi-Bond carriers integrate into without additional support equipment
Automated wafer handling

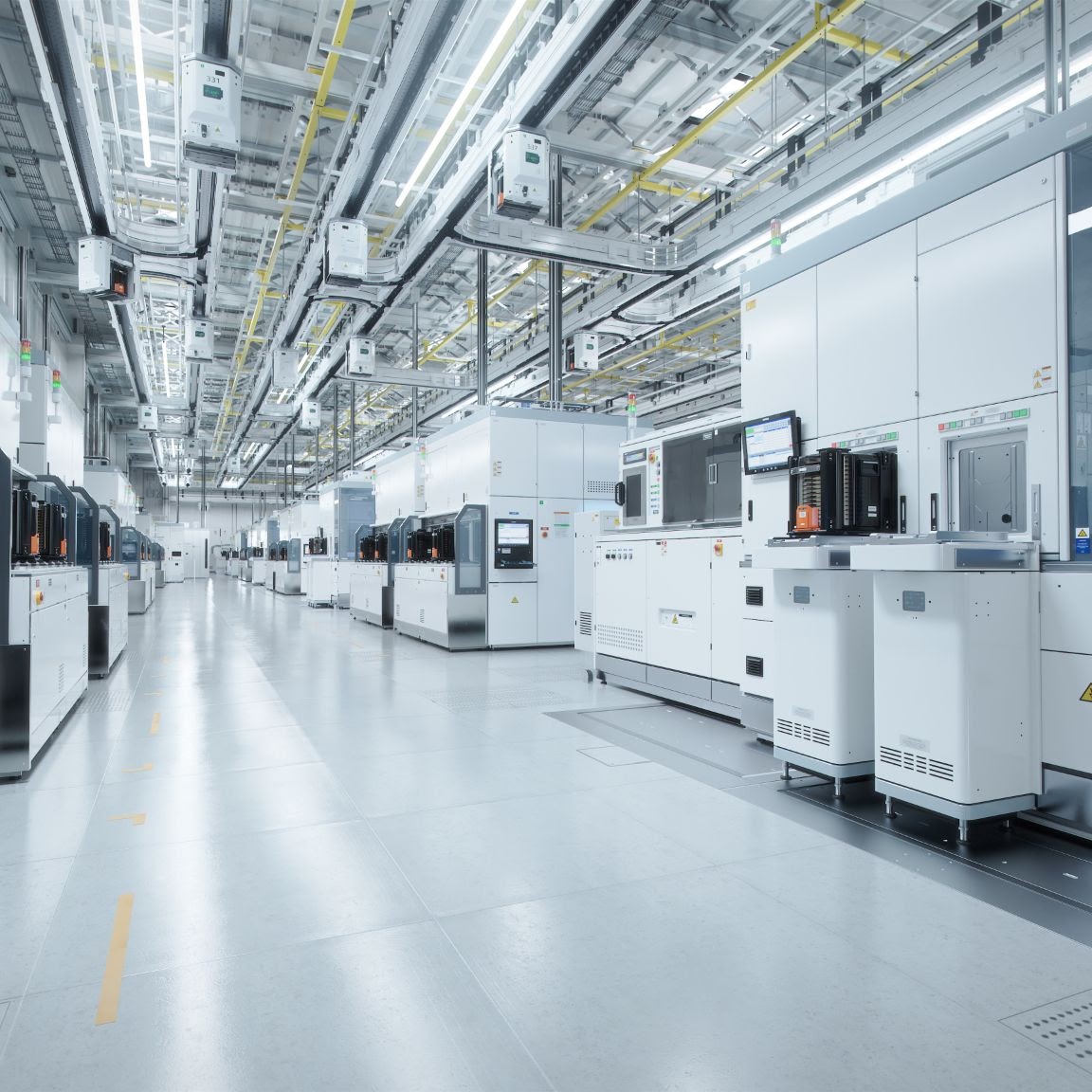

Semiconductor fabrication cleanroom with rows of processing equipment — Semi-Bond carriers integrate directly into existing cleanroom processes
Semiconductor cleanroom fab

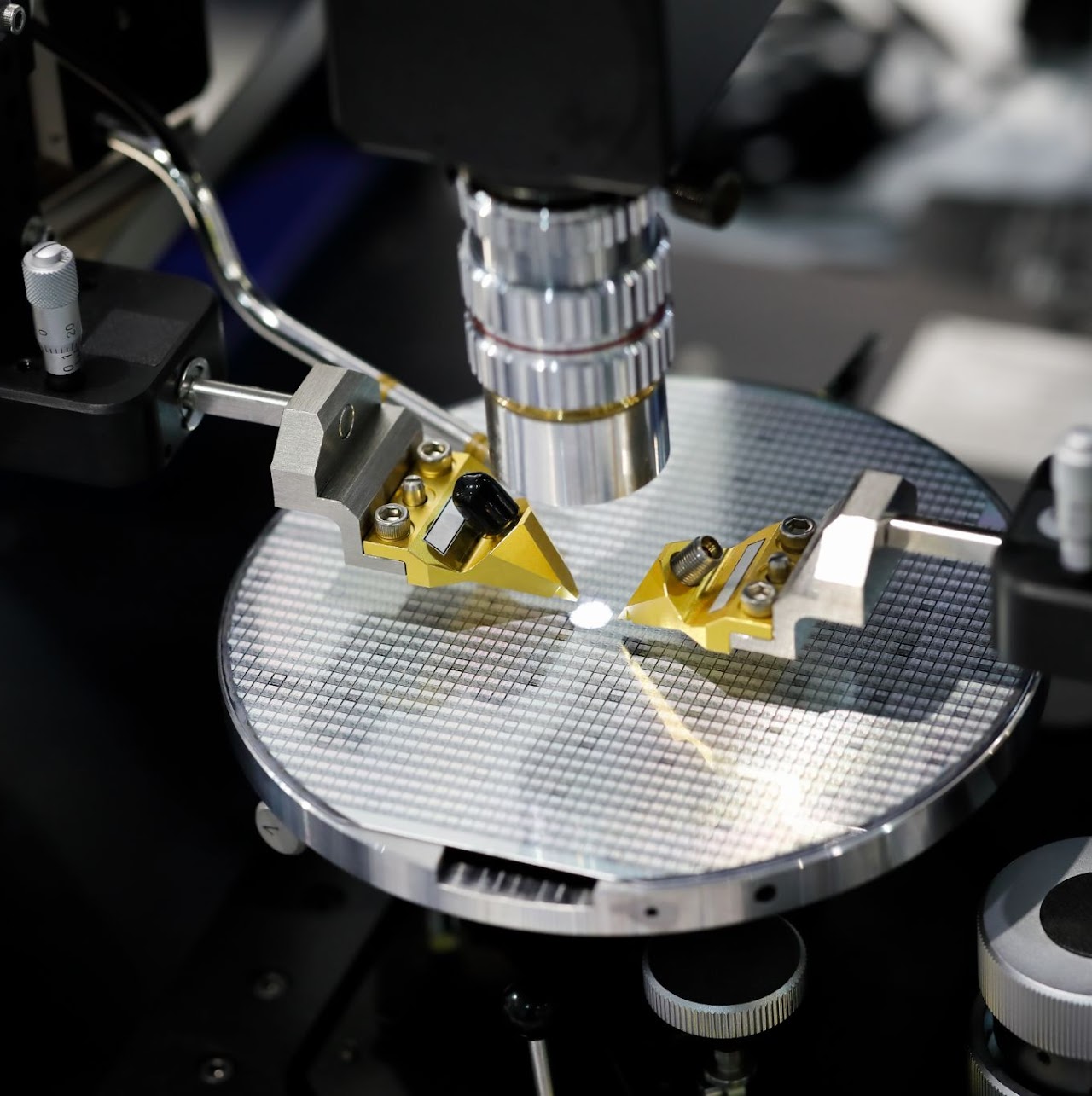

Wafer probing and inspection setup with test probes positioned on a semiconductor wafer — Semi-Bond carriers protect device integrity through every process step
Wafer probing and inspection

Standard and Custom Carrier Configurations

Semi-Bond carriers are offered in standard wafer diameters as well as customer-defined shapes and sizes to accommodate a wide range of device and packaging geometries.

  • Standard wafer diameter formats
  • Customer-defined shapes and sizes
  • Tailored to your specific process requirements
  • Engineering support to qualify carriers into your process

View SBC-LT Carrier Details Request a Custom Quote
